Description
FR-LSH (Flame Retardant Low Smoke and Halogen) Cable | 70°C
Does not propagate flame & fire | Reduced Smoke and Acid Gas Emission
Application
Flexible single core cable with FR-LSH (Flame Retardant Low Smoke and Halogen) PVC insulation. This cable can be used in panels, cabinets, machines, and internal wirings with switchgears, relays, controllers, and control units — especially in hazard-prone areas. It is also ideal for industrial and commercial installations in densely populated environments where safety and reduced smoke emission are critical.
Technical Data
- Approvals: IS 694 marked, FIA/TAC
- Cable Code: Y (FR-LSH)
- Voltage Grade: Up to and including 1100V

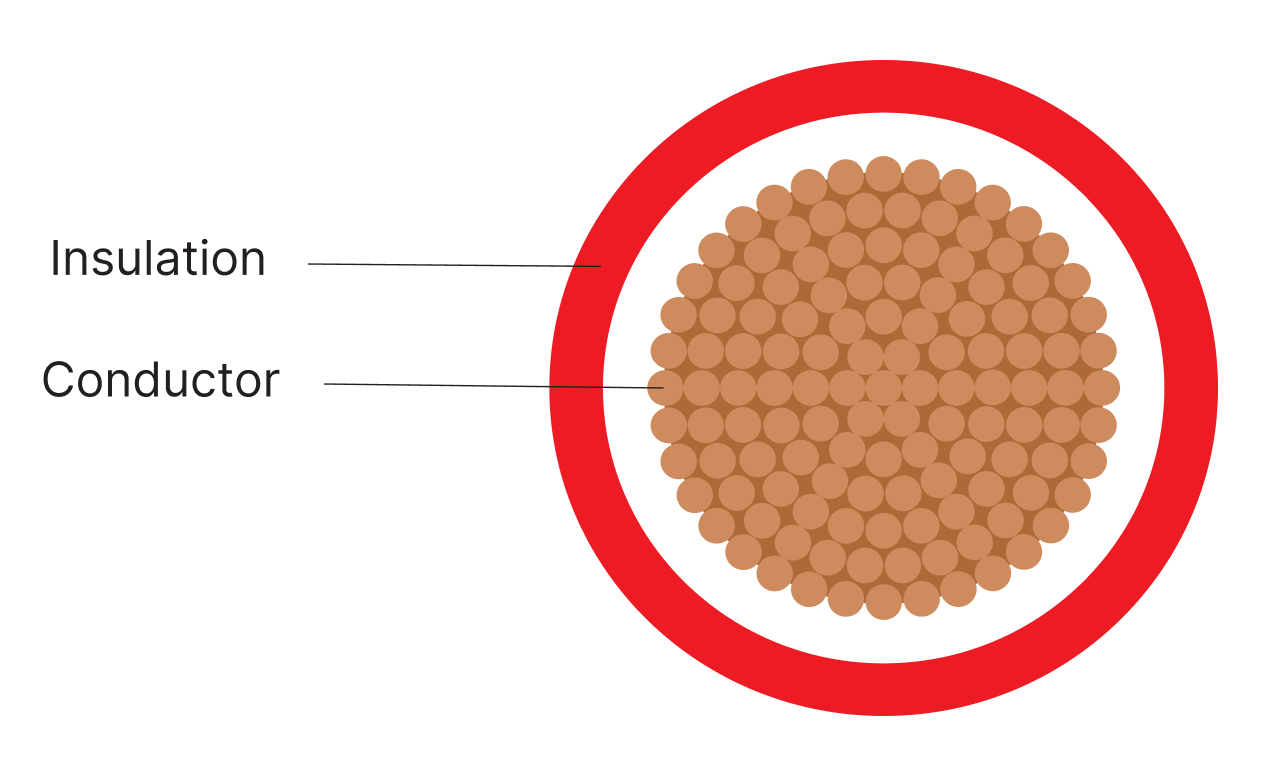

- Conductor: Flexible electrolytic annealed plain copper, Class 5, IS 8130
- Insulation: Specially formulated FR-LSH PVC, IS 5831
- Packing: 200 mtr. in polybag packing or 180 mtr. coil packed in protective cartons
Properties
- Temperature Range: -15°C to +70°C
- Reduced smoke emission provides higher visibility
- Minimized acid gas generation
- Max. short circuit temperature rating: 160°C
- Self-extinguishing and flame retardant according to IS 10810 Part 61
- Free from 200+ hazardous substances
Cable Design Parameters
| Part Number | Nominal Cross Sectional Area (Sq.mm) | No. of Strands / Max. Strand Dia (mm) | Nominal Insulation Thickness (mm) | Maximum Diameter Over Insulation (mm) | Max. Current Carrying Capacity (A) |
|---|---|---|---|---|---|
| 02080101xx50 | 0.5 | 16/0.2 | 0.6 | 2.6 | 5 |
| 02080102xx50 | 0.75 | 24/0.2 | 0.6 | 2.8 | 8 |
| 02080103xx50 | 1 | 32/0.2 | 0.6 | 3.0 | 13 |
| 02080104xx50 | 1.5 | 30/0.25 | 0.7 | 3.4 | 17 |
| 02080105xx50 | 2.5 | 50/0.25 | 0.8 | 4.1 | 24 |
| 02080106xx50 | 4 | 56/0.30 | 0.8 | 4.8 | 30 |
| 02080107xx50 | 6 | 84/0.30 | 0.8 | 5.3 | 38 |
| 02080108xx50 | 10 | 140/0.30 | 1.0 | 7.0 | 52 |
| 02080109xx50 | 16 | 126/0.40 | 1.0 | 8.1 | 70 |
| 02080110xx50 | 25 | 196/0.40 | 1.2 | 10.2 | 88 |
| 02080111xx50 | 35 | 276/0.40 | 1.2 | 11.7 | 112 |
| 02080112xx50 | 50 | 396/0.40 | 1.4 | 13.9 | 146 |
| 02080113xx50 | 70 | 360/0.50 | 1.4 | 16.0 | 216 |
| 02080114xx50 | 95 | 480/0.50 | 1.6 | 18.2 | 262 |
| 02080115xx50 | 120 | 608/0.50 | 1.6 | 20.2 | 310 |
| 02080116xx50 | 150 | 750/0.50 | 1.8 | 22.5 | 355 |
| 02080117xx50 | 185 | 931/0.50 | 2.0 | 24.9 | 415 |
| 02080118xx50 | 240 | 1200/0.50 | 2.2 | 28.4 | 500 |
| 02080119xx50 | 300 | 1500/0.50 | 2.4 | 31.0 | 550 |
Test Parameters
| Test | Test Method | Values |
|---|---|---|
| Limited Oxygen Index | IS 10810 P-58 | > 29% |
| Limited Temp. Index | IS 10810 P-64 | ≥ 250°C |
| Smoke Density | IS 10810 P-63 | < 60% |
| Acid Gas Generation | IS 10810 P-59 | < 20% |
